[T&C] Using DNS over HTTPS (DoH) while preserving Client IP

Tips & Configurations Tips
1

Thunder CFW enables you to provide DNS over HTTPS (DoH) service to end-users without having to upgrade the DNS infrastructure itself.

Here is a sample setup:

image.png644×136 21.4 KB

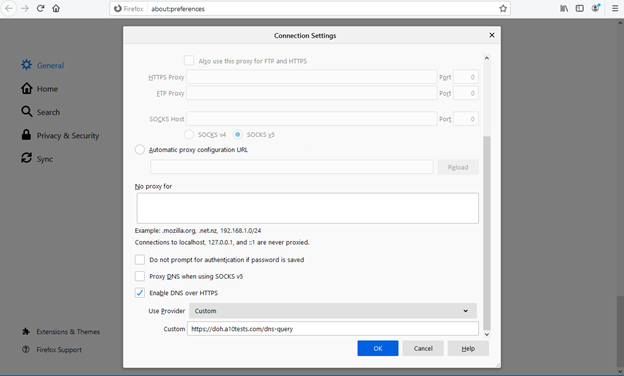

The client browser (in this case Firefox browser) is configured with a custom DoH URI, which resolves to a VIP on the Thunder CFW:

image.png624×376 53.4 KB

The Thunder CFW configuration is as follows:

interface ethernet 1
 enable
 ip address 100.64.1.253 255.255.255.0
!
interface ethernet 2
 enable
 ip address 100.64.100.253 255.255.255.0
!
interface ethernet 3
 enable
 ip address 192.168.1.253 255.255.255.0
!
!
ip route 0.0.0.0 /0 192.168.1.1
!
slb server RS10 100.64.100.10
 port 53 udp
 port 80 tcp
!
slb server RS11 100.64.100.11
 port 53 udp
 port 80 tcp
!
slb service-group SG-DNS udp
 member RS10 53
 member RS11 53
!
slb service-group SG-HTTP tcp
 member RS10 80
 member RS11 80
!
slb template client-ssl doh.a10test.com
 cert doh
 key doh
!
slb template client-ssl a10tests.com
 cert a10tests.com
 key a10tests.com
!
slb template doh doh
 forwarder
   udp-service-group SG-DNS
!
slb virtual-server VIP1 100.64.1.250
 port 53 dns-udp
   service-group SG-DNS
 port 80 http
   service-group SG-HTTP
 port 443 https
   service-group SG-HTTP
   template doh doh
   template client-ssl a10tests.com
!
sflow setting local-collection
!
sflow collector ip 127.0.0.1 6343
!
!
end

Note: Port 80 is open on the two servers to enable the health check to pass for the service-group SG-HTTP. Alternatively, you can configure an ICMP health-monitor for the service port or service group.

For DoH, you apply a DoH template under port 443 of a VIP as shown above.

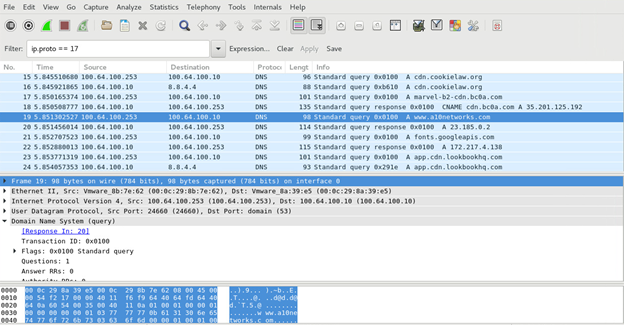

By default, the client IP will not be preserved in the DNS traffic sent to the back-end DNS servers. For example, here is a screenshot of packet capture on the DNS server, and as one can see, the source IP is that of the Thunder device, not the original client IP.

image.png624×325 136 KB

So how can we preserve the original client IP?

This can be achieved using the following command under the DoH template:

slb template doh doh
 source-nat disable
 forwarder
   udp-service-group SG-DNS

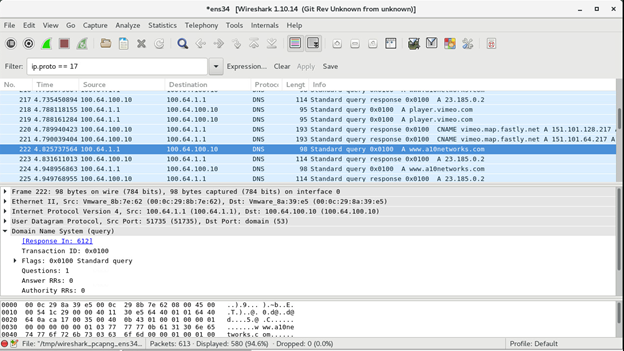

Here is a screenshot of packet capture on the DNS server with the modified DoH template applied:

image.png624×351 129 KB

Now the original client IP (e.g., 100.64.1.1) is preserved in the DNS packet sent to the back-end DNS server.
