In an earlier [article, we saw how you can use the Thunder Kubernetes Connector (TKC) to dynamically configure the Thunder ADC for load-balancing traffic to a Kubernetes cluster. In that article, we specified the SLB configuration using annotations in an Ingress resource.
Starting from ](Thunder Kubernetes Connector with Thunder ADC — A10 Community)TKC v1.11- , Thunder Kubernetes Connector (TKC) allows you to define your own Custom Resource Definition (CRD) for SLB objects in the Kubernetes API. These SLB objects are then configured with custom options on the Thunder device.
TKC supports Custom Resource Definition (CRD) for the following SLB objects:
virtual-server
- virtual-port
- service-group
- slb cipher template
- slb server-ssl template
- slb client-ssl template
- health monitor
- ip nat pool
In this article, we will see how you can specify the SLB configuration using CRDs.
Video Demo
For a demo of the below steps, see:

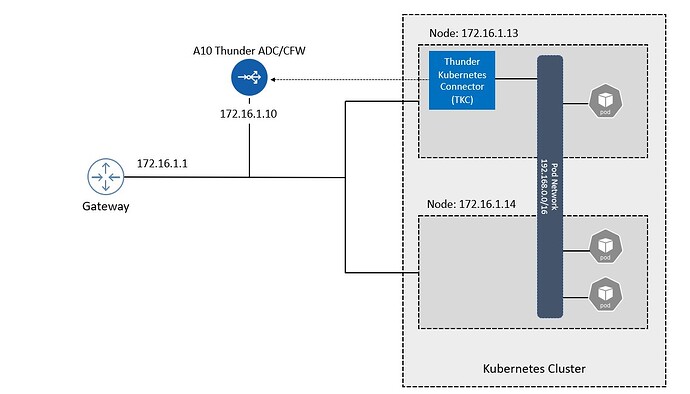

Setup
- The K8s cluster consists of:
Master: 172.16.1.12 - Node: 172.16.1.13
- Node: 172.16.1.14
The Pod network is 192.168.0.0/16.
The K8s version is:
$ kubectl version
Client Version: version.Info{Major:"1", Minor:"21", GitVersion:"v1.21.2", GitCommit:"092fbfbf53427de67cac1e9fa54aaa09a28371d7", GitTreeState:"clean", BuildDate:"2021-06-16T12:59:11Z", GoVersion:"go1.16.5", Compiler:"gc", Platform:"linux/amd64"}
Server Version: version.Info{Major:"1", Minor:"21", GitVersion:"v1.21.2", GitCommit:"092fbfbf53427de67cac1e9fa54aaa09a28371d7", GitTreeState:"clean", BuildDate:"2021-06-16T12:53:14Z", GoVersion:"go1.16.5", Compiler:"gc", Platform:"linux/amd64"}
The current configuration of the Thunder device is:
harmony-controller telemetry
log-rate 1750
!
ip dns primary 8.8.8.8
!
ip dns secondary 9.9.9.9
!
timezone America/Los_Angeles
!
ntp server time.google.com
!
glm use-mgmt-port
glm enable-requests
!
interface management
ip address 10.64.4.32 255.255.255.0
ip control-apps-use-mgmt-port
ip default-gateway 10.64.4.1
enable
!
interface ethernet 1
enable
ip address 172.16.1.10 255.255.255.0
!
interface ethernet 2
!
!
ip route 0.0.0.0 /0 172.16.1.1
!
sflow setting local-collection
!
sflow collector ip 127.0.0.1 6343
!
!
end
Configuration
Deploy a web app in the K8s cluster
In the K8s cluster, deploy a web service named web01, with Service type as NodePort:
$ cat web01.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: webmap01
data:
index.html: "<html><h1>This is web service web01</h1><html>"
---
apiVersion: v1
kind: Service
metadata:
name: web01
spec:
type: NodePort
ports:
- name: http-port
protocol: TCP
port: 8080
targetPort: 80
selector:
app: web01
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: web01
spec:
replicas: 3
selector:
matchLabels:
app: web01
template:
metadata:
labels:
app: web01
spec:
volumes:
- name: volmap
configMap:
name: webmap01
containers:
- name: nginx
image: nginx:1.13
ports:
- containerPort: 80
volumeMounts:
- name: volmap
mountPath: /usr/share/nginx/html/
$ kubectl apply -f web01.yaml
$ kubectl get pods
NAME READY STATUS RESTARTS AGE
web01-68c59f6f4c-dcvs2 1/1 Running 0 6d
web01-68c59f6f4c-qrfjd 1/1 Running 0 6d
web01-68c59f6f4c-z865r 1/1 Running 0 6d
Enable HTTPS management access on the Thunder ADC interface
The Thunder Kubernetes Connector (TKC) will run as a Pod within the K8s cluster and will communicate with Thunder ADC on interface ethernet 1. For this, enable management access on that interface of the Thunder ADC:
enable-management service https
ethernet 1
Deploy K8s Resources
Create K8s Secret for Thunder device username/password
Create a Secret object with base64 encoding of the default username/password for the Thunder ADC (admin/a10):
$ cat a10-secret.yaml
apiVersion: v1
kind: Secret
metadata:
name: a10-secret
type: Opaque
data:
username: YWRtaW4=
password: YTEw
$ kubectl apply -f a10-secret.yaml
secret/a10-secret created
Create ServiceAccount, ClusterRole, and ClusterRoleBinding objects
Deploy ServiceAccount, ClusterRole, and ClusterRoleBinding objects. This ServiceAccount will subsequently be applied to the TKC, thereby granting the TKC the required permissions to access the various resources within the K8s cluster.
$ cat a10-rbac.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
name: a10-ingress
namespace: default
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: a10-ingress
rules:
- apiGroups: [""]
resources: ["pods", "nodes", "services", "endpoints", "secrets", "configmaps"]
verbs: ["get", "list", "watch"]
- apiGroups: ["extensions", "networking.k8s.io"]
resources: ["ingresses"]
verbs: ["get", "list", "watch"]
- apiGroups: ["tkc.a10networks.com"]
resources: ["natpools", "healthmonitors", "virtualservers", "servicegroups", "serverssls", "virtualports", "templateciphers", "clientssls", "serversssls/status", "clientssls/status"]
verbs: ["get", "watch", "list", "patch", "create", "update"]
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: a10-ingress
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: a10-ingress
subjects:
- kind: ServiceAccount
name: a10-ingress
namespace: default
$ kubectl apply -f a10-rbac.yaml
serviceaccount/a10-ingress created
clusterrole.rbac.authorization.k8s.io/a10-ingress created
clusterrolebinding.rbac.authorization.k8s.io/a10-ingress created
Deploy Ingress Resource
Deploy an Ingress Resource with ingress class of a10-ext:
$ cat a10-ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: a10-ingress01
namespace: default
annotations:
kubernetes.io/ingress.class: a10-ext
spec:
rules:
- host: web01.a10tests.com
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: web01
port:
number: 8080
$ kubectl apply -f a10-ingress.yaml
ingress.networking.k8s.io/a10-ingress01 created
$ kubectl get ingress
NAME CLASS HOSTS ADDRESS PORTS AGE
a10-ingress01 <none> web01.a10tests.com 80 19s
Deploy TKC
Here we deploy TKC version v1.11.0.0.
$ cat a10-tkc.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: a10-thunder-kubernetes-connector
spec:
replicas: 1
selector:
matchLabels:
app: thunder-kubernetes-connector
template:
metadata:
labels:
app: thunder-kubernetes-connector
spec:
serviceAccountName: a10-ingress
containers:
- name: thunder-kubernetes-connector
image: a10networks/a10-kubernetes-connector:1.11.0.0
imagePullPolicy: IfNotPresent
env:
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
- name: WATCH_NAMESPACE
value: default
- name: CONTROLLER_URL
value: https://172.16.1.10
- name: ACOS_USERNAME_PASSWORD_SECRETNAME
value: a10-secret
- name: PARTITION
value: shared
args:
- --watch-namespace=$(WATCH_NAMESPACE)
- --use-node-external-ip=true
- --patch-to-update=true
- --safe-acos-delete=true
- --use-ingress-class-only=true
- --ingress-class=a10-ext
$ kubectl apply -f a10-tkc.yaml
deployment.apps/a10-thunder-kubernetes-connector created
Install and Deploy CRDs for SLB objects
Install TKC CRDs
Install A10’s TKC CRDs in the Kubernetes cluster:
$ kubectl create -f https://a10networks.github.io/tkc-doc/crd/a10-crd-installation.yaml
$ kubectl api-resources | grep a10
clientssls a10clissl tkc.a10networks.com/v1alpha1 true ClientSsl
healthmonitors a10hm tkc.a10networks.com/v1 true HealthMonitor
natpools a10natpool tkc.a10networks.com/v1 true NatPool
serverssls a10srvssl tkc.a10networks.com/v1alpha1 true ServerSsl
servicegroups a10sg tkc.a10networks.com/v1 true ServiceGroup
templateciphers a10tc tkc.a10networks.com/v1alpha1 true TemplateCipher
virtualports a10vport tkc.a10networks.com/v1 true VirtualPort
virtualservers a10vip tkc.a10networks.com/v1alpha1 true VirtualServer
HealthMonitor Resource
$ cat crd-hm-http.yaml
apiVersion: "tkc.a10networks.com/v1"
kind: HealthMonitor
metadata:
name: hm-http
spec:
name: hm-http
type: http
port: 80
retry: 5
interval: 10
timeout: 2
httpMethod: "GET"
httpUrl: "/"
httpCode: 200
[a10tme@master ~]$ kubectl apply -f crd-hm-http.yaml
healthmonitor.tkc.a10networks.com/hm-http created
[a10tme@master ~]$ kubectl get a10hm
NAME NAME STATUS TYPE HOST URL CODE
hm-http hm-http Active http / 200
ServiceGroup Resource
Note that the ServiceGroup Resource binds to a specific Service Resource, in this case, web01:
$ cat crd-sg-web01.yaml
apiVersion: "tkc.a10networks.com/v1"
kind: ServiceGroup
metadata:
name: sg-web01
spec:
name: "sg-web01"
service: "web01"
healthCheck: “hm-http”
$ kubectl apply -f crd-sg-web01.yaml
servicegroup.tkc.a10networks.com/sg-web01 created
$ kubectl get a10sg
NAME NAME STATUS SERVICE PROTOCOL METHOD
sg-web01 sg-web01 Active web01 tcp round-robin
VirtualServer Resource
$ cat crd-vip-web01.yaml
apiVersion: "tkc.a10networks.com/v1alpha1"
kind: VirtualServer
metadata:
name: vip-web01
spec:
name: vip-web01
ip-address: 172.16.1.251
$ kubectl apply -f crd-vip-web01.yaml
virtualserver.tkc.a10networks.com/vip-web01 created
$ kubectl get a10vip
NAME NAME VIP STATUS
vip-web01 vip-web01 172.16.1.251 Active
VirtualPort Resource
Note that the VirtualPort resource binds to a specific Ingress resource, in this case, a10-ingress01:
$ cat crd-vport-web01-http.yaml
apiVersion: "tkc.a10networks.com/v1"
kind: VirtualPort
metadata:
name: vport-web01-http
spec:
virtualServer: "vip-web01"
port: 80
protocol: "http"
ingress: "a10-ingress01"
snatAuto: 1
$ kubectl apply -f crd-vport-web01-http.yaml
virtualport.tkc.a10networks.com/vport-web01-http created
$ kubectl get a10vport
NAME PORT PROTOCOL STATUS VIRTUALSERVER INGRESS ROUTE
vport-web01-http 80 http Active vip-web01 a10-ingress01
Verification
On the Thunder ADC, you will see the following SLB configuration has been added by the TKC:
health monitor hm-http
retry 5
interval 10 timeout 2
method http port 80 expect response-code 200 url GET /
!
slb server 172.16.1.13 172.16.1.13
port 30451 tcp
!
slb server 172.16.1.14 172.16.1.14
port 30451 tcp
!
slb service-group sg-web01 tcp
health-check hm-http
member 172.16.1.13 30451
member 172.16.1.14 30451
!
slb template http default-a10-ingress01-httpTemplate
url-switching starts-with / service-group sg-web01
!
slb virtual-server vip-web01 172.16.1.251
port 80 http
source-nat auto
service-group sg-web01
template http default-a10-ingress01-httpTemplate
On the client machine, we have a DNS entry for “web01.a10tests.com” mapped to the VIP on the Thunder ADC. Now we can access the website http://web01.a10tests.com from this client machine:
$ curl http://web01.a10tests.com
<html><h1>This is web service web01</h1><html>
